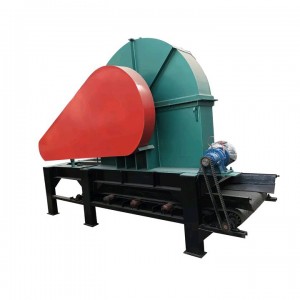

Wood Chipper FD1710
Introduction

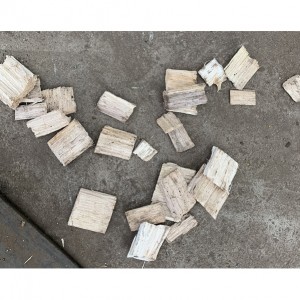

Disc wood chipper machine, one of the wood chipping machines, is specially designed for cutting wood logs and wood timbers. Wood materials can be cut into high quality wood chips and shavings with flat incision, even length and uniform chip thickness. The premium wood chips processed by disc wood chipper have got lots of popularity in wood processing industries such as pulp papermaking,shaving board,MDF and in independent wood chip production base. Special design, perfect performance, disc wood chipper is an ideal wood chopping equipment for wood chips processing.Log and timber is the main raw material for cutting.
Parameter:
|
Model |
FD950 |
FD1710 |
FD1212 |
FD1300 |
FD1216 |
FD1680 |
|
Diameter of Disc (mm) |
950 |
1000 |
1220 |
1300 |
1600 |
1650 |
|
Number of knife (pc) |
6 |
6 |
6 |
4 |
6 |
4 |
|
Feed inlet (mm) |
220*210 |
230*220 |
350*350 |
350*350 |
545*383 |
500*500 |
|
Maximum processing diameter (mm) |
200 |
200 |
300 |
300 |
300 |
400 |
|
Length of wood chip (mm) |
25-40 |
20-30 |
20-35 |
60-100 |
25-45 |
5-10 |
|
Main motor power (kw) |
55 |
55-75 |
90-110 |
110 |
132-160 |
160-200 |
|
Capacity (m³/h) |
6-8 |
8-10 |
10-12 |
12-15 |
15-20 |
15-25 |
Product advantages:
1. High production capacity and low energy consumption, reasonable structure, durable, simple operation, high degree of automation, easy maintenance.
2. Significant labor and working time are saved by using the grab feeding.
3. The size of finished wood chips is high quality and can be changed according to customer's requirements.
